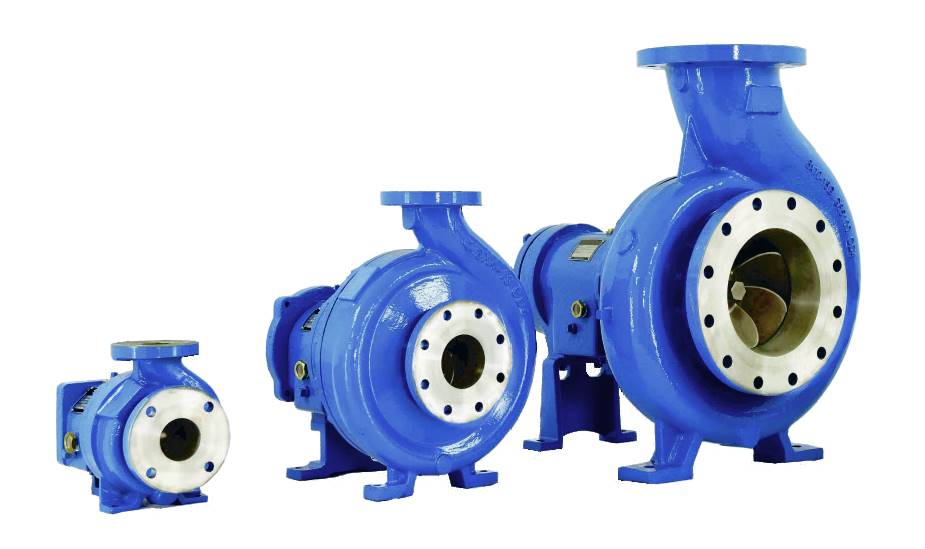

G-Line Series

The ANSI design was created in an effort to make replacement pumps easily accessible. All ANSI pumps are manufactured to be dimensionally interchangeable and have a back pull-out design. This allows facilities and plants the opportunity to source pumps from multiple manufacturers without changing their pipe schematic and design. The Texas Rig Equipment G-Line Series is 100% interchangeable with the Goulds 3196.

Specifications

• Manufactured to meet ANSI/ASME B73.1 standard
• Inpro bearing isolators
• SKF or equal bearings
• Standard, large and modified seal chambers
• External impeller adjustment
• Multiple materials of construction available
• (Carbon Steel, 316SS, CD4, Alloy 20, Hast B, Hast C)
• Open impeller design
• 100% interchangeable with Goulds 3196
• STX, MTX, LTX and XLT models
• Various shaft and shaft sleeve combinations

---

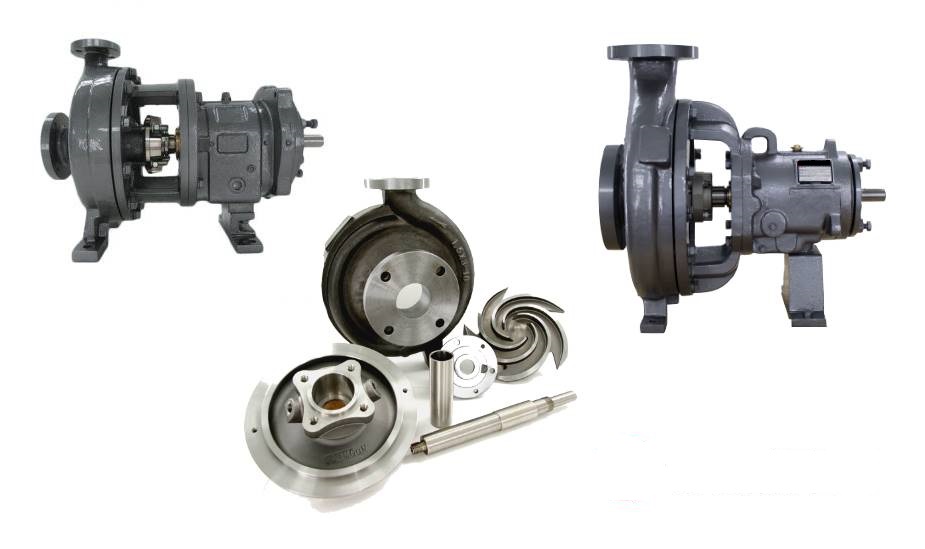

D-Line Series

The ANSI design was created in an effort to make replacement pumps easily accessible. All ANSI pumps are manufactured to be dimensionally interchangeable and have a back pull-out design. This allows facilities and plants the opportunity to source pumps from multiple manufacturers without changing their pipe schematic and design. The Texas Rig Equipment  D-Line Series is 100% interchangeable with the Durco MKIII.

Specifications

• Manufactured to meet ANSI/ASME B73.1 standard
• Inpro bearing isolators
• SKF or equal bearings
• Standard, large and modified seal chambers
• External impeller adjustment
• Multiple materials of construction available
• (Carbon Steel, 316SS, CD4, Alloy 20, Hast B, Hast C)
• Reverse vane impeller design
• 100% interchangeable with Durco Mark III
• Mark III Groups 1,2 & 3 models
• Various shaft and shaft sleeve combinations
